The SH61’s adjustable torque control enables gentle and energy-efficient motor operation. It also features functions for bypass control and the detection of overloads and underloads.
The new soft starter model also features the Modbus Serial communication protocol ex-works, enabling it to forward valuable data on power consumption to higher-level software systems.
Communication: Fieldbus protocols such as Modbus TCP, EtherNet/IP, Profibus, Profinet, or CANOpen can be retrofitted.
With this level of connectivity, soft starters such as the SH61 are an important component for increasing the visibility of energy consumption in a digitally networked automation architecture.
The SH61 soft starter is available from the manufacturer in the US and Europe.

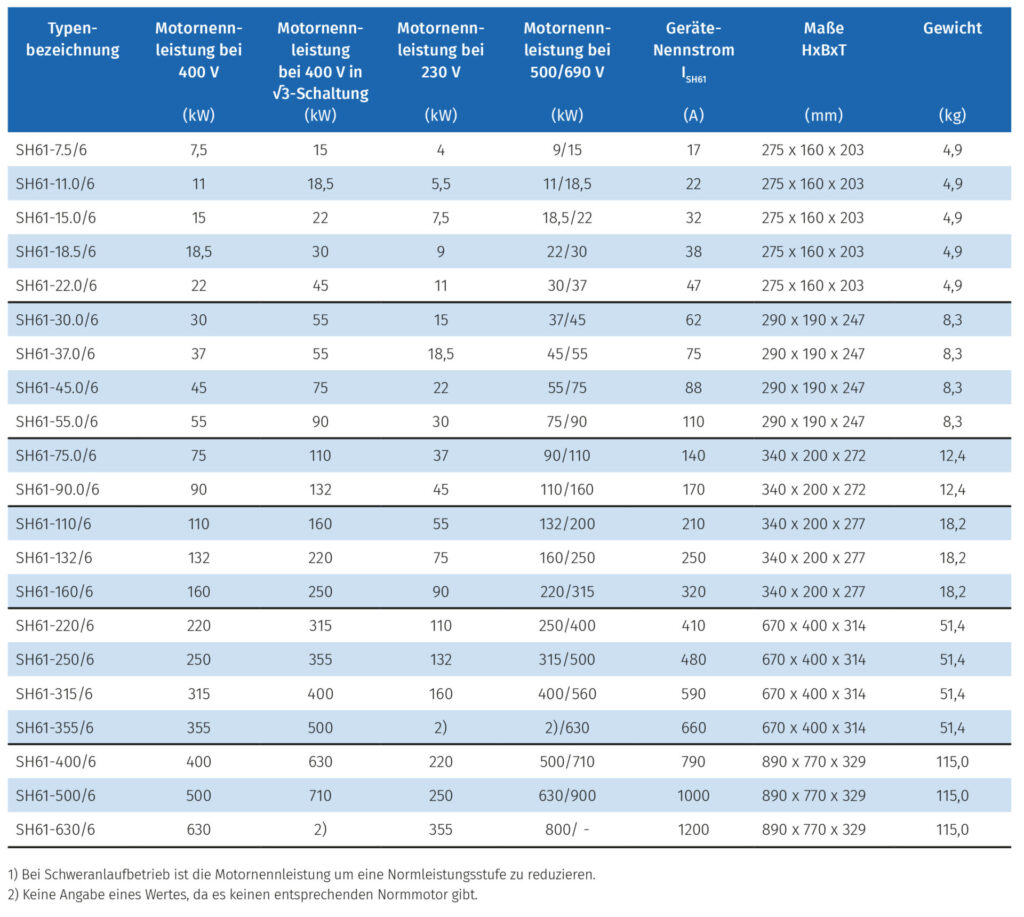

| Typen- bezeichnung | Motornenn- leistung bei 400 V (kW) | Motornenn- leistung bei 400 V in √3-Schaltung (kW) | Motornenn- leistung bei 230 V (kW) | Motornenn- leistung bei 500/690 V (kW) | Geräte- Nennstrom ISH61 (A) | Maße HxBxT (mm) | Gewicht (kg) |
|---|---|---|---|---|---|---|---|
| SH61-7.5/6 | 7,5 | 15 | 4 | 9/15 | 17 | 275 x 160 x 203 | 4,9 |
| SH61-11.0/6 | 11 | 18,5 | 5,5 | 11/18,5 | 22 | 275 x 160 x 203 | 4,9 |
| SH61-15.0/6 | 15 | 22 | 7,5 | 18,5/22 | 32 | 275 x 160 x 203 | 4,9 |
| SH61-18.5/6 | 18,5 | 30 | 9 | 22/30 | 38 | 275 x 160 x 203 | 4,9 |
| SH61-22.0/6 | 22 | 45 | 11 | 30/37 | 47 | 275 x 160 x 203 | 4,9 |
| SH61-30.0/6 | 30 | 55 | 15 | 37/45 | 62 | 290 x 190 x 247 | 8,3 |
| SH61-37.0/6 | 37 | 55 | 18,5 | 45/55 | 75 | 290 x 190 x 247 | 8,3 |
| SH61-45.0/6 | 45 | 75 | 22 | 55/75 | 88 | 290 x 190 x 247 | 8,3 |
| SH61-55.0/6 | 55 | 90 | 30 | 75/90 | 110 | 290 x 190 x 247 | 8,3 |
| SH61-75.0/6 | 75 | 110 | 37 | 90/110 | 140 | 340 x 200 x 272 | 12,4 |
| SH61-90.0/6 | 90 | 132 | 45 | 110/160 | 170 | 340 x 200 x 272 | 12,4 |
| SH61-110/6 | 110 | 160 | 55 | 132/200 | 210 | 340 x 200 x 277 | 18,2 |
| SH61-132/6 | 132 | 220 | 75 | 160/250 | 250 | 340 x 200 x 277 | 18,2 |
| SH61-160/6 | 160 | 250 | 90 | 220/315 | 320 | 340 x 200 x 277 | 18,2 |
| SH61-220/6 | 220 | 315 | 110 | 250/400 | 410 | 670 x 400 x 314 | 51,4 |
| SH61-250/6 | 250 | 355 | 132 | 315/500 | 480 | 670 x 400 x 314 | 51,4 |
| SH61-315/6 | 315 | 400 | 160 | 400/560 | 590 | 670 x 400 x 314 | 51,4 |
| SH61-355/6 | 355 | 500 | 2) | 2)/630 | 660 | 670 x 400 x 314 | 51,4 |
| SH61-400/6 | 400 | 630 | 220 | 500/710 | 790 | 890 x 770 x 329 | 115,0 |
| SH61-500/6 | 500 | 710 | 250 | 630/900 | 1000 | 890 x 770 x 329 | 115,0 |
| SH61-630/6 | 630 | 2) | 355 | 800/ - | 1200 | 890 x 770 x 329 | 115,0 |
1) Bei Schweranlaufbetrieb ist die Motornennleistung um eine Normleistungsstufe zu reduzieren.
2) Keine Angabe eines Wertes, da es keinen entsprechenden Normmotor gibt.
